Description
🎛 Overview

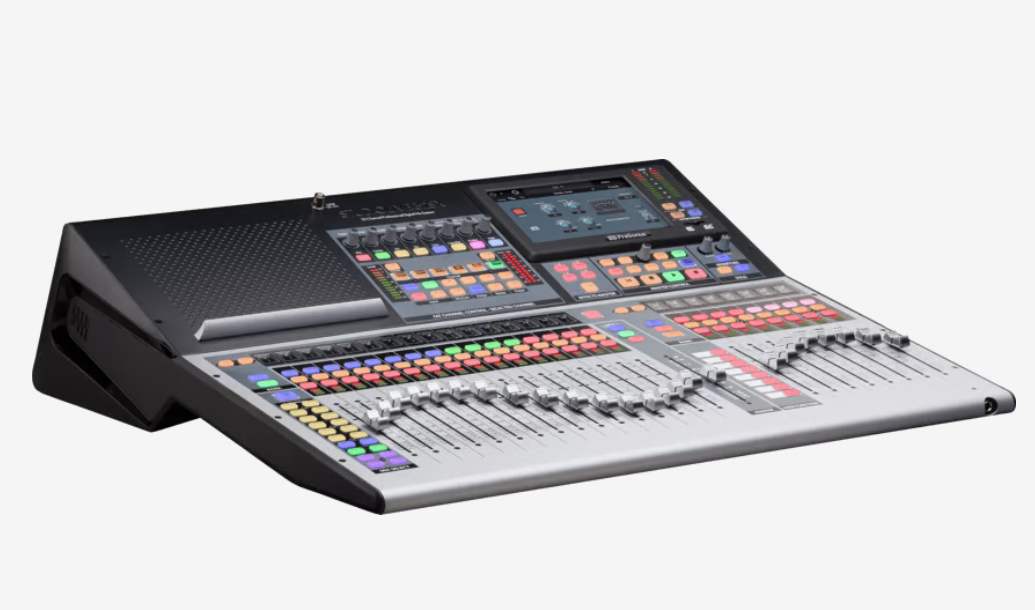

•32-channel (mono) digital mixer with 40 mix channels in a 25‑fader chassis using split‑fader layers
•16 FlexMix buses (configurable as aux, subgroup or matrix), 4 effects buses, 4 subgroups, plus an independent Solo bus and Main mix—a total of 24 mix buses
•24 DCAs for grouping and control
•Dual‑core FLEX DSP Engine powering 286 simultaneous processors
•128‑channel USB interface (64×64) and onboard SD‑card recorder (up to 34 tracks) with Virtual Soundcheck support
⸻
🖥 Control & Software
•25 touch‑sensitive, motorized faders
•7” full‑color touchscreen
•Remote control via PreSonus UC Surface (macOS, Windows, iPad, Android) and QMix‑UC (iOS/Android) apps
•Scene/project management with user profiles, scene lock & channel-safe features
⸻
⚙ Inputs & Outputs
Analog Inputs
•32 mic preamps: 16 XLR plus 16 XLR–¼″ combo jacks (XMAX preamps, recallable)
•Phantom power (+48 V) selectable per channel
•Frequency response: 20 Hz–20 kHz ±0.5 dBu; THD < 0.005%, SNR ≈ 94 dB
Analog Outputs
•Main mix: 2 × XLR
•Mono sum: 1 × XLR
•FlexMix outputs: 12 × XLR + 4 × ¼″ TRS
•Subgroup/monitor outputs: 2 × ¼″ monitor, 4 × ¼″ subgroup outs
•Tape input/output: RCA stereo pairs
•Headphone output: ¼″ TRS, 100 mW/channel into 60 Ω, frequency response 20 Hz–20 kHz ±0.5 dB, SNR ≈ 96 dB, THD ≈ 0.01%
Digital I/O
•AVB audio networking: Locking XLR Ethernet port (64×64 channels) for expansion (NSB stage‑boxes, EarMix monitors, multiple mixers)
•AES/EBU digital output: XLR male
•USB-B 2.0 to host computer (128‑channel interface)
⸻
💽 Audio & Processing
•24‑bit A/D‑D/A at 44.1 or 48 kHz samplerate ()
•Internal audio processing: 32‑bit floating point
•ADC/DAC dynamic range ≈ 115 dB A‑weighted at 48 kHz; system latency ≈ 1.9 ms (analog in → analog out, all processing active)
•Internal processing includes per‑channel Fat Channel plugins:
•Input channels: High‑pass filter, gate, compressor/limiter, 4‑band parametric EQ
•Output buses: 6‑band EQ, compressor, limiter, output delay
•Flexible FLEX FX multieffects: four effects slots, four dedicated FX buses—load reverb/delay models
⸻
⚡ Power, Physical & System Details
•Power: 85 W continuous; universal 100–230 VAC, 50/60 Hz
•Operational temp: 0–40 °C (32–104 °F)
•Dimensions: approx. 660 mm × 584 mm × 165 mm (25.98” × 22.97” × 6.51”)
•Weight: ~13.6 kg (30 lb)
⸻
📦 Included Software & Licensing
•Studio One Pro (or Artist) DAW license included
•PreSonus Capture multitrack live‑recording software included
•Remote apps: UC Surface; QMix‑UC for monitor mix control
