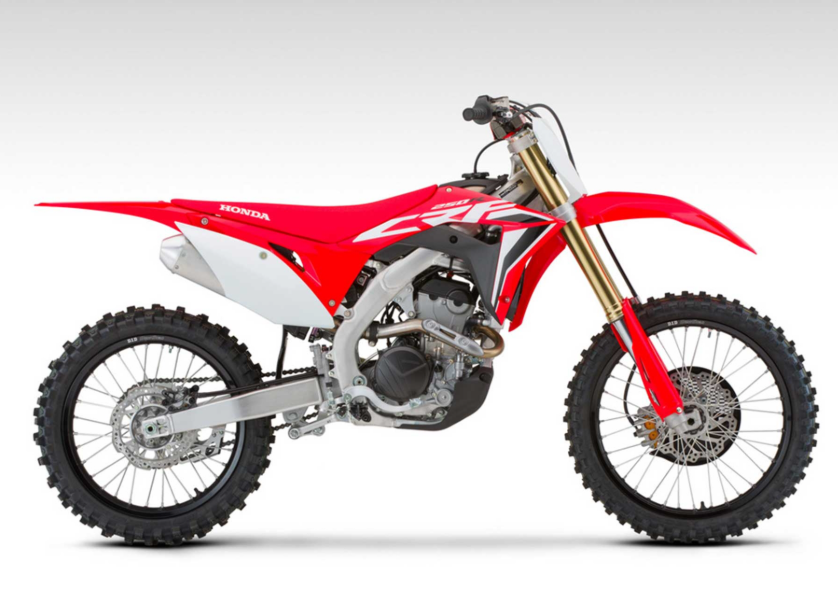

Honda CRF250R (Motocross Model)

Description

• Engine: 249 cc liquid-cooled single-cylinder, DOHC, 13.9:1 compression ratio

• Fuel Injection: PGM-FI with 44 mm throttle bore

• Starter: Electric push-button; clutch is cable-actuated; 9‑plate clutch pack

Drivetrain & Suspension:

• 5-speed manual, #520 chain, 13T/50TFront: 49 mm inverted Showa SPG coil-spring fork; 12.2″ (310 mm) travel; adjustable damping and preload

• Rear: Adjustable Pro-Link Showa shock; 12.1″ travel (307 mm)

Dimensions:

• Seat Height: ~37.6″ (955 mm)

• Wheelbase: ~58.4″ (1,483 mm)

• Ground Clearance: ~13.0″ (330 mm)

• Wet Weight: ~234 lb (106 kg) with fuel and fluids

• Fuel Capacity: ~1.7 gal (6.4 L)

Other Specs:

• Brakes: 260 mm front disc, 240 mm rear disc

• Tires: Pirelli Scorpion MX32 – 80/100‑21 front, 100/90‑19 rear

• Aluminum twin-spar frame

• Wheel travel and geometry tuned generation-over-generation for better handling and consistency

New Upgrades for 2025:

• New chassis tuned for improved turning and feedback

• Lighter, more compact subframe and revised suspension linkage

• Higher-capacity radiator and inlet pathway

• Softer cam profiles and greater rigidity in crank for smoother torque delivery

• Engine mapping per gear, plus selectable ride modes including Launch Control

• Reduced seat height and narrower bodywork for better rider mobility
